Plugin System

Build a plugin

You should build the plugin workflow in the UI from https://app.voltcloud.dev/dashboard/plugins/list.

For most plugins, the workflow starts with Modifier, Arguments, Context, ForEach, and Entrypoint. Once that execution path exists, you add one Exposure node for each result file that VOLT should ingest. If any of those results should become a 3D artifact, you then connect an Export node to that exposure. From that point on, your code only has to write the file that the exposure expects.

Each node has a narrow responsibility. Modifier defines how the plugin appears in the UI, Arguments defines the parameters the user can configure before execution, and Context + ForEach define which trajectory data is being iterated. Entrypoint defines the runtime and the uploaded payload that will be executed, Exposure tells VOLT which output file to read after execution, and Export tells VOLT how to interpret any geometry or chart data that comes back from that exposure.

That is the main mental model to keep in mind while building plugins: the Entrypoint runs your code, the Exposure reads the file your code produced, and the Export node turns the export payload inside that file into a GLB or another artifact that VOLT can render.

What a plugin looks like inside

You can download the complete example plugin here: atomistic-exporter-clusters.zip. This example shows how to export grouped atoms using AtomisticExporter, and the ZIP is already packaged as an importable plugin with its own plugin.json + the binary ZIP expected by the Entrypoint node.

The script reads atom positions from the current dump and groups them into Cluster 0, Cluster 1, and Cluster 2. Those keys are the same groups VOLT uses to color the atoms in the viewer. The same exposure also exports a per-atom property named cluster_id. The grouping rule is intentionally simple and uses atom_id % 3 only to demonstrate the output format, so you can replace that part with your real clustering logic later.

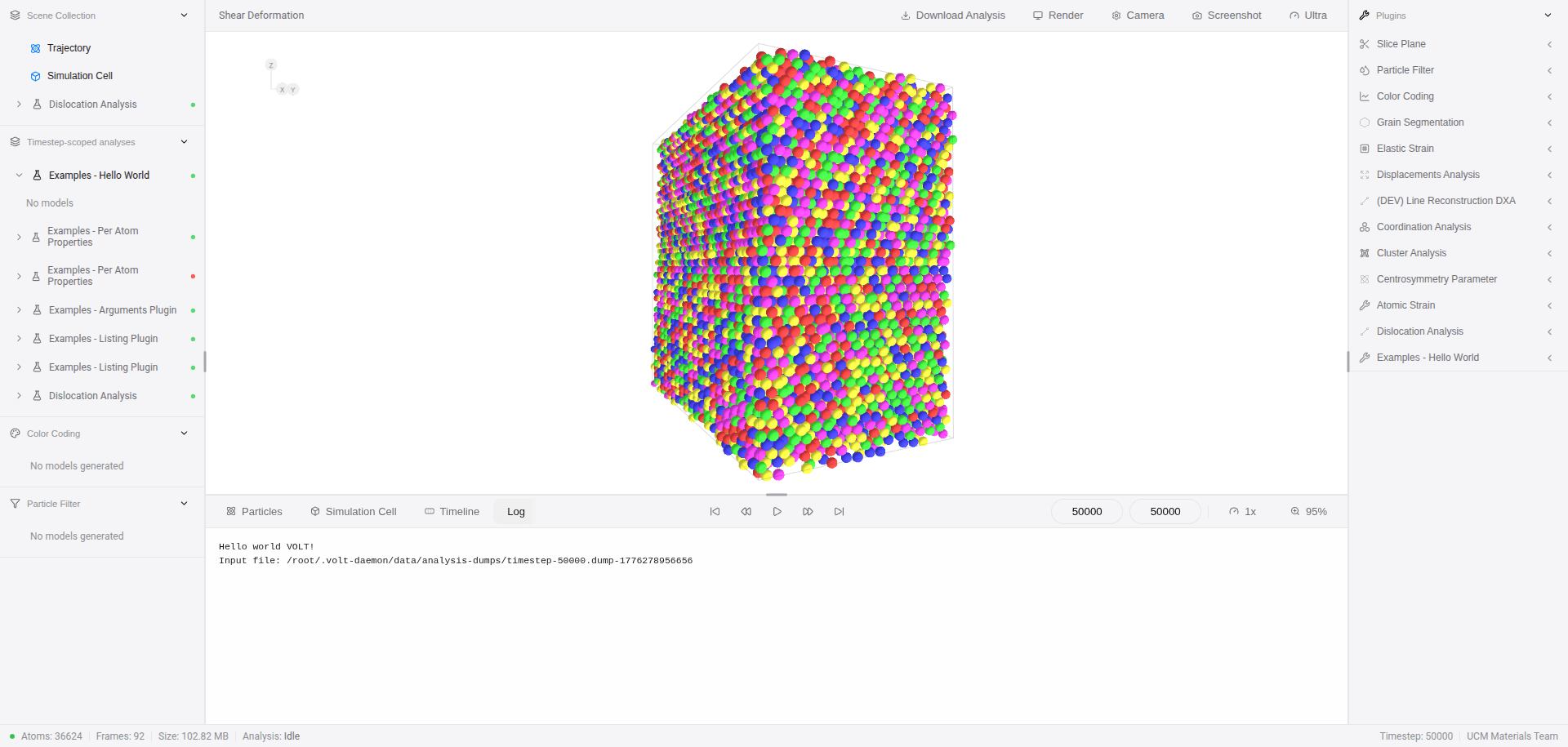

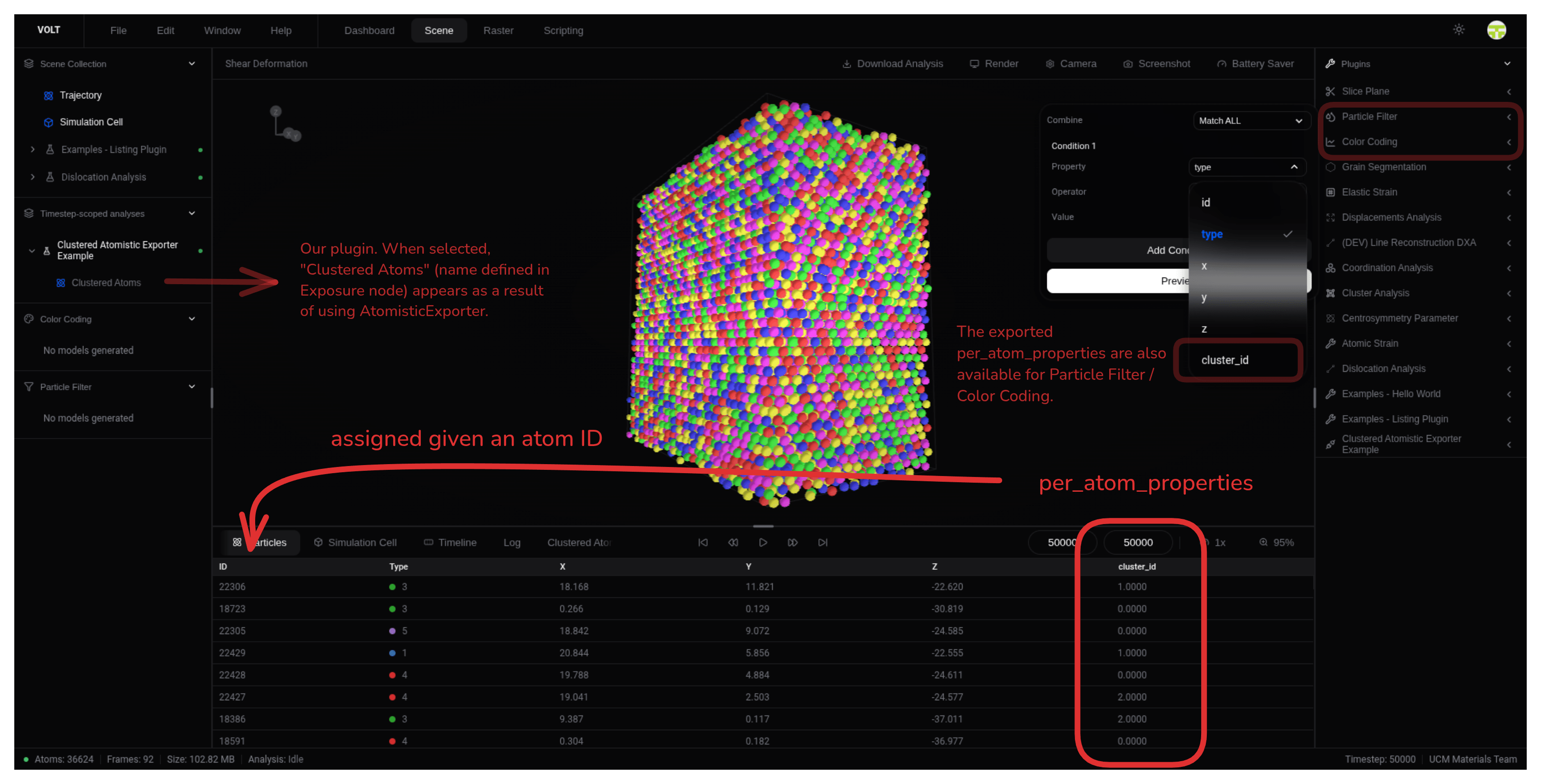

The image below shows the result of this example in the canvas, with atoms grouped and colored by the keys exported through AtomisticExporter.

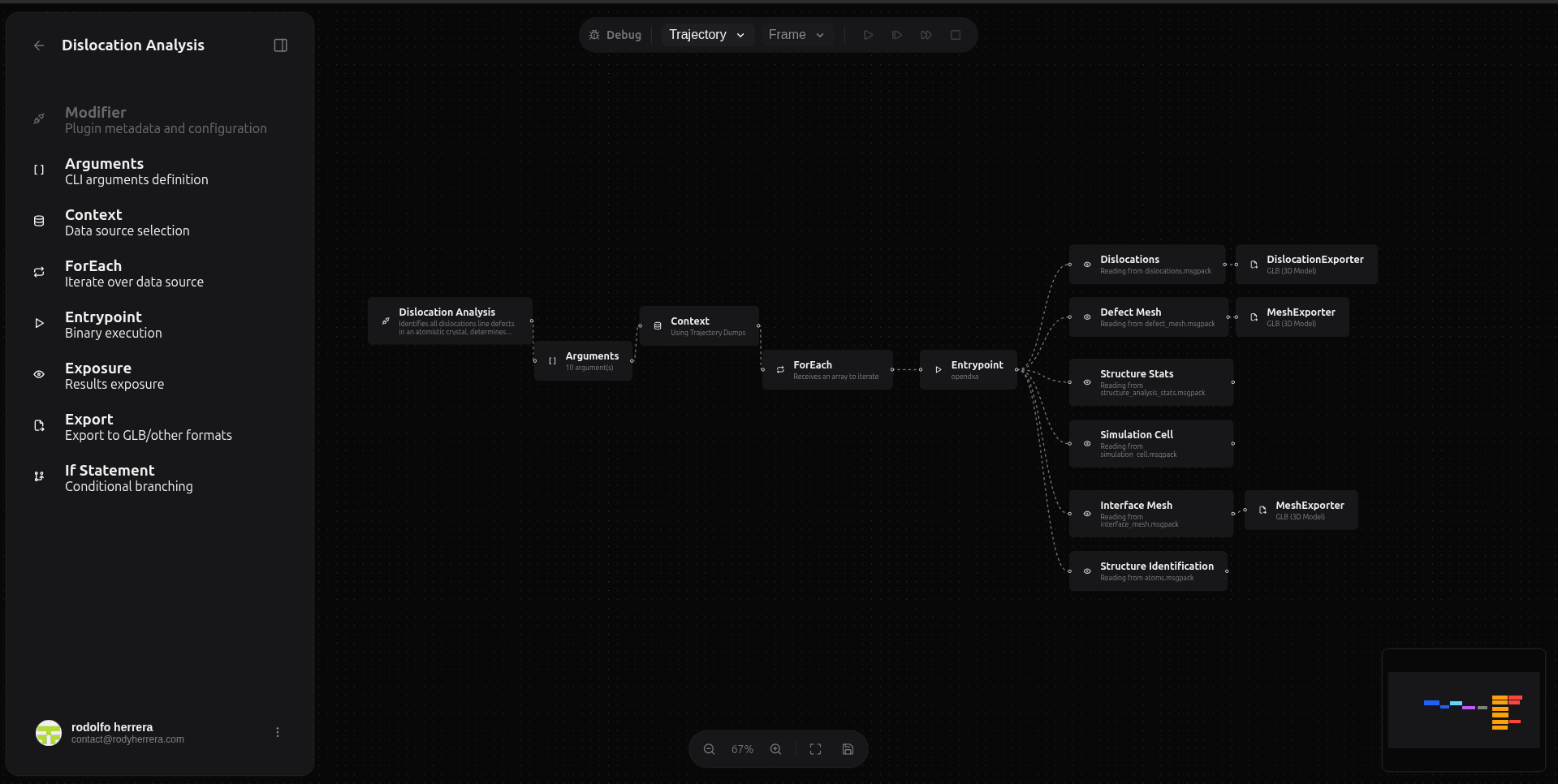

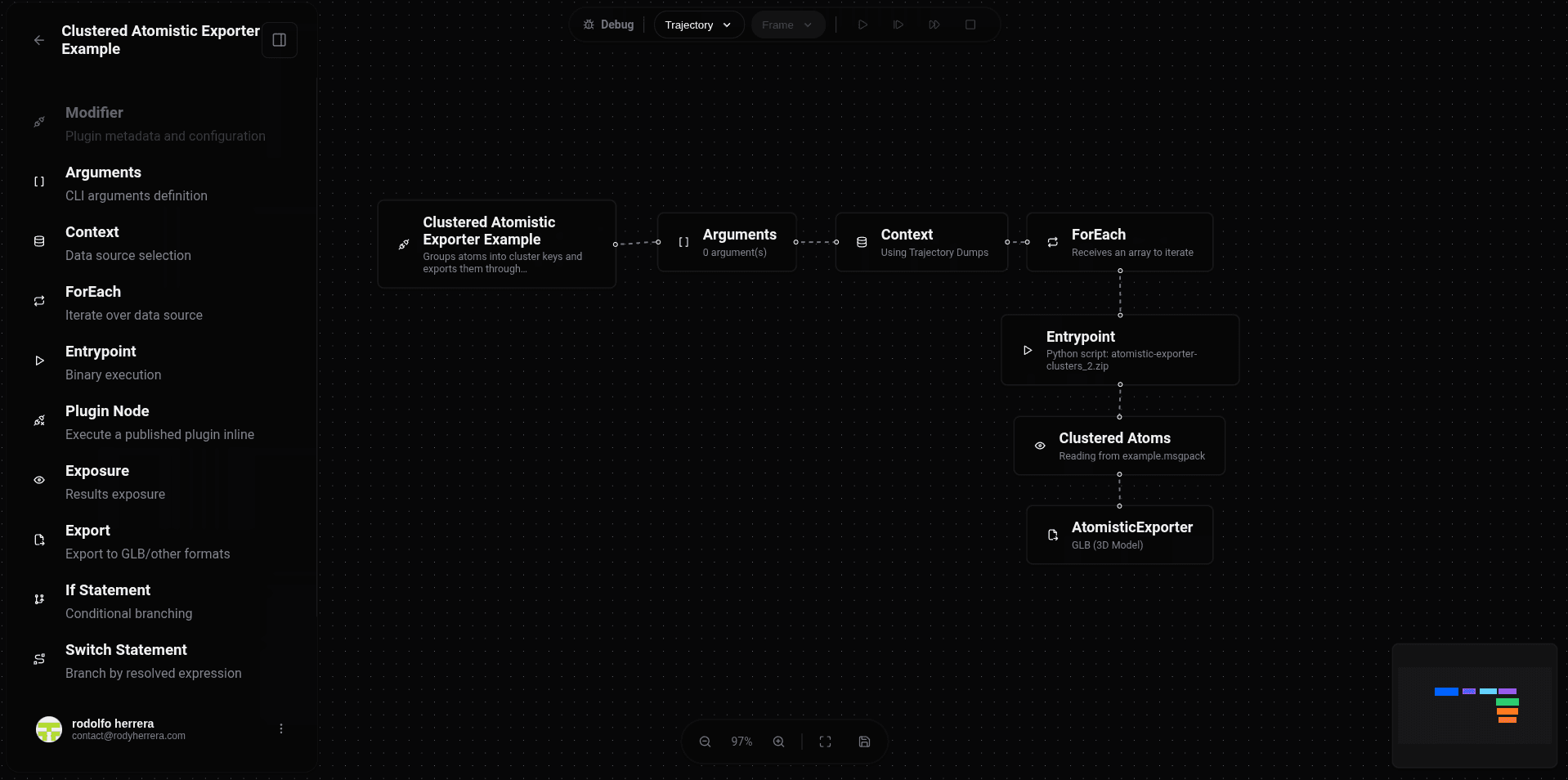

Plugin workflow:

The easiest way to read this script is in four phases: first it reads the current dump and finds the ITEM: ATOMS section, then it validates that the required columns exist, then it assigns each atom to an example cluster, and finally it builds a single MessagePack payload containing listings, per-atom-properties, and the grouped AtomisticExporter data.

import msgpack
import sys

# From "arguments" in Entrypoint node configuration.
input_dump_path = sys.argv[1]
output_base = sys.argv[2]

# Read the current trajectory dump and find the ATOMS section.
with open(input_dump_path) as f:
    lines = f.read().splitlines()

atoms_header_idx = next(
    idx for idx, line in enumerate(lines)
    if line.startswith('ITEM: ATOMS')
)

# The AtomisticExporter needs atom id + position.
atom_columns = lines[atoms_header_idx].split()[2:]

id_idx = atom_columns.index('id')
x_idx = atom_columns.index('x')
y_idx = atom_columns.index('y')
z_idx = atom_columns.index('z')

# This is only an example grouping strategy.
# Replace atom_id % cluster_count with your real cluster assignment logic.
cluster_count = 3
cluster_labels = [f'Cluster {index}' for index in range(cluster_count)]
grouped_atoms = {label: [] for label in cluster_labels}
per_atom_properties = []

# Build both outputs at the same time:
# 1. grouped atoms for AtomisticExporter
# 2. per-atom properties so cluster_id is also available in VOLT tables/filters
for raw_line in lines[atoms_header_idx + 1:]:
    values = raw_line.split()
    atom_id = int(values[id_idx])
    position = [
        float(values[x_idx]),
        float(values[y_idx]),
        float(values[z_idx])
    ]

    # cluster_id is the numeric property, cluster_label is the export group name.
    cluster_id = atom_id % cluster_count
    cluster_label = cluster_labels[cluster_id]
    grouped_atoms[cluster_label].append({
        'id': atom_id,
        'pos': position
    })
    per_atom_properties.append({
        'id': atom_id,
        'cluster_id': cluster_id
    })

export_groups = {
    label: atoms
    for label, atoms in grouped_atoms.items()
    if atoms
}

# sub-listing
cluster_rows = [
    {
        'cluster': label,
        'atoms': len(atoms)
    }
    for label, atoms in export_groups.items()
]

# One exposure file can include listings, per-atom properties, and 3D export data.
payload = {
    'main_listing': {
        'cluster_count': len(export_groups),
        'exported_atoms': sum(len(atoms) for atoms in export_groups.values())
    },
    'sub_listings': {
        'clusters': cluster_rows
    },
    'per-atom-properties': per_atom_properties,
    'export': {
        'AtomisticExporter': export_groups
    }
}

# The Exposure node expects: {output_base}_example.msgpack
with open(f'{output_base}_example.msgpack', 'wb') as f:
    f.write(msgpack.packb(payload, use_bin_type=True))

print(f'Wrote {output_base}_example.msgpack with {len(export_groups)} atom groups')

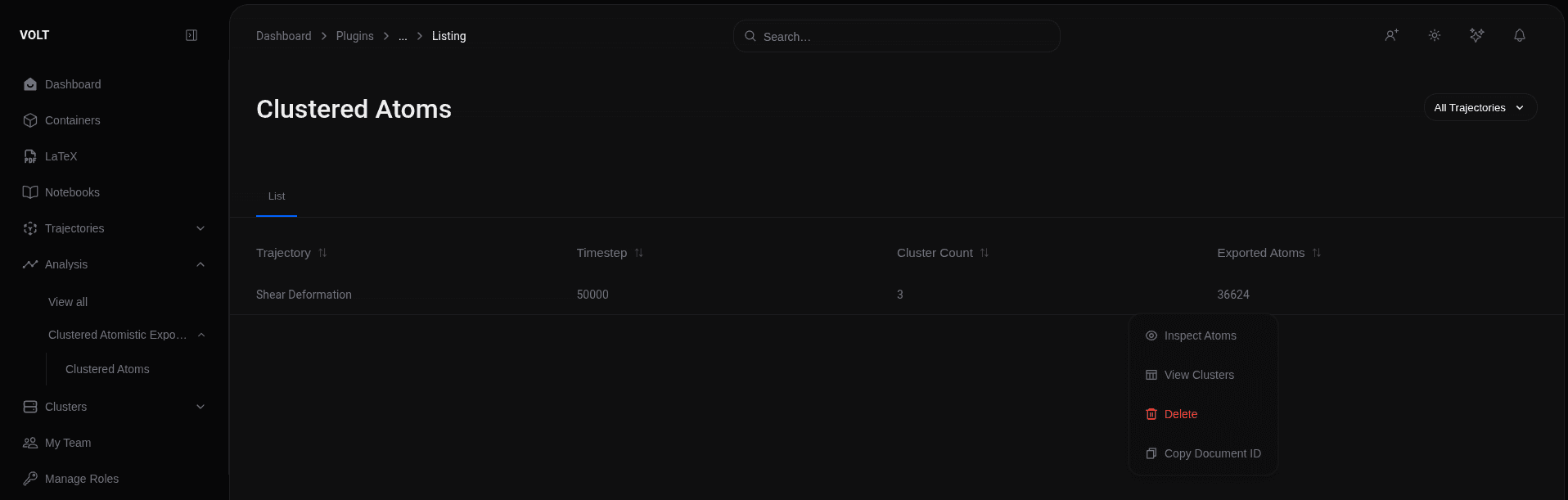

All listings exported by plugin analyses are also visible in the dashboard. To find them, go through the sidebar using Analysis > Plugin Name > Exposure Name.

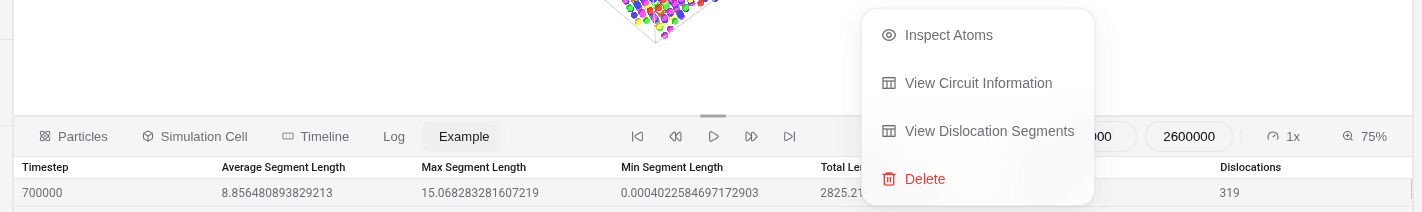

The results exported after running the plugin are also visible through the Dashboard:

You can also reproduce the same visual effect without relying on AtomisticExporter groups directly. Since this example also exports the per-atom property cluster_id, you can use color coding based on that property and obtain the same cluster-based coloring. In other words, AtomisticExporter groups and color coding + cluster_id are two ways of expressing the same grouping logic.

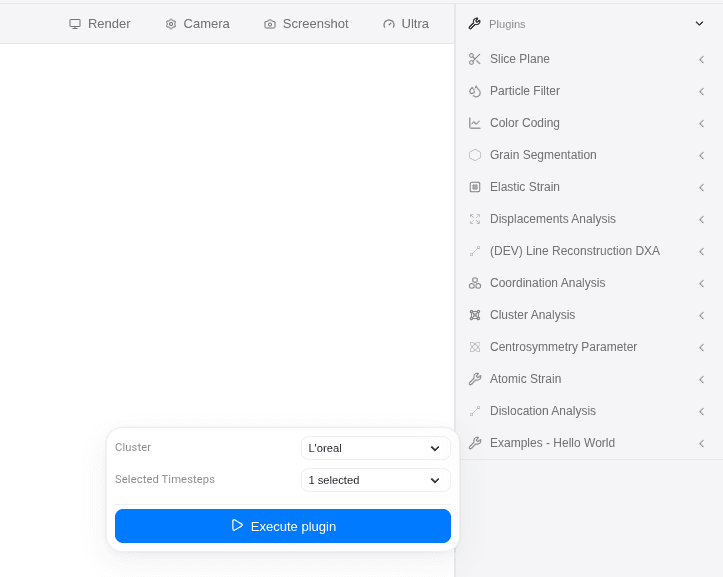

The scene can also contain multiple models at the same time. This is useful when you want to compare several exported artifacts together, or when the plugin contributes an additional model on top of the base trajectory visualization.

Plugin right-click menu

Once a plugin exists, you can manage it from the right-click menu.

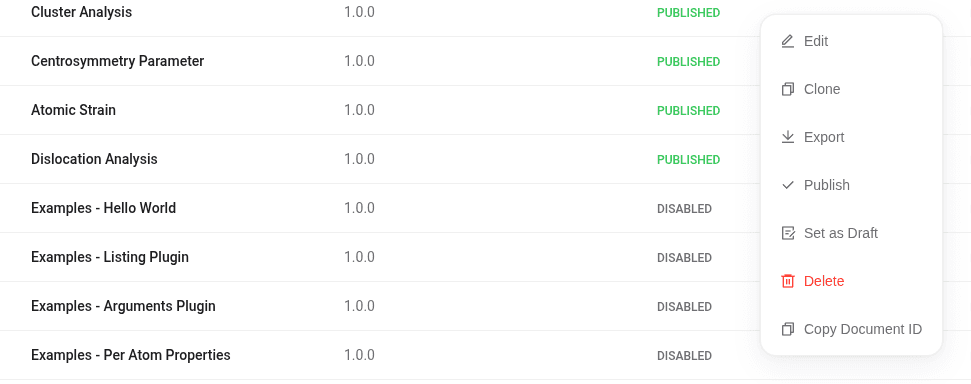

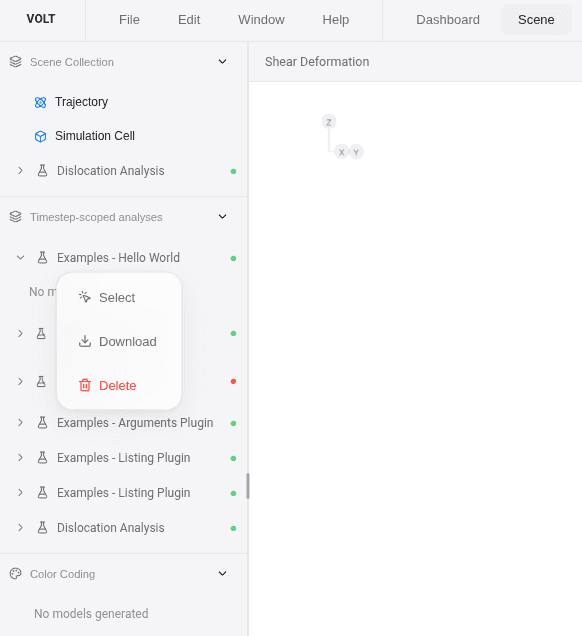

The image below shows the available actions:

Those options are:

• Edit: open the plugin builder and modify the workflow.
• Clone: create a copy of the plugin.
• Export: export the plugin so it can be reused or imported elsewhere.
• Publish: make the plugin available in the canvas.
• Set as Draft: move the plugin back to draft state so it is no longer visible in the canvas.
• Delete: remove the plugin.

Node-by-node configuration guide

This is the shortest way to understand what each node does and how it should be configured.

Modifier

The Modifier node defines how the plugin appears in VOLT.

Typical configuration:

That is usually enough for a first plugin.

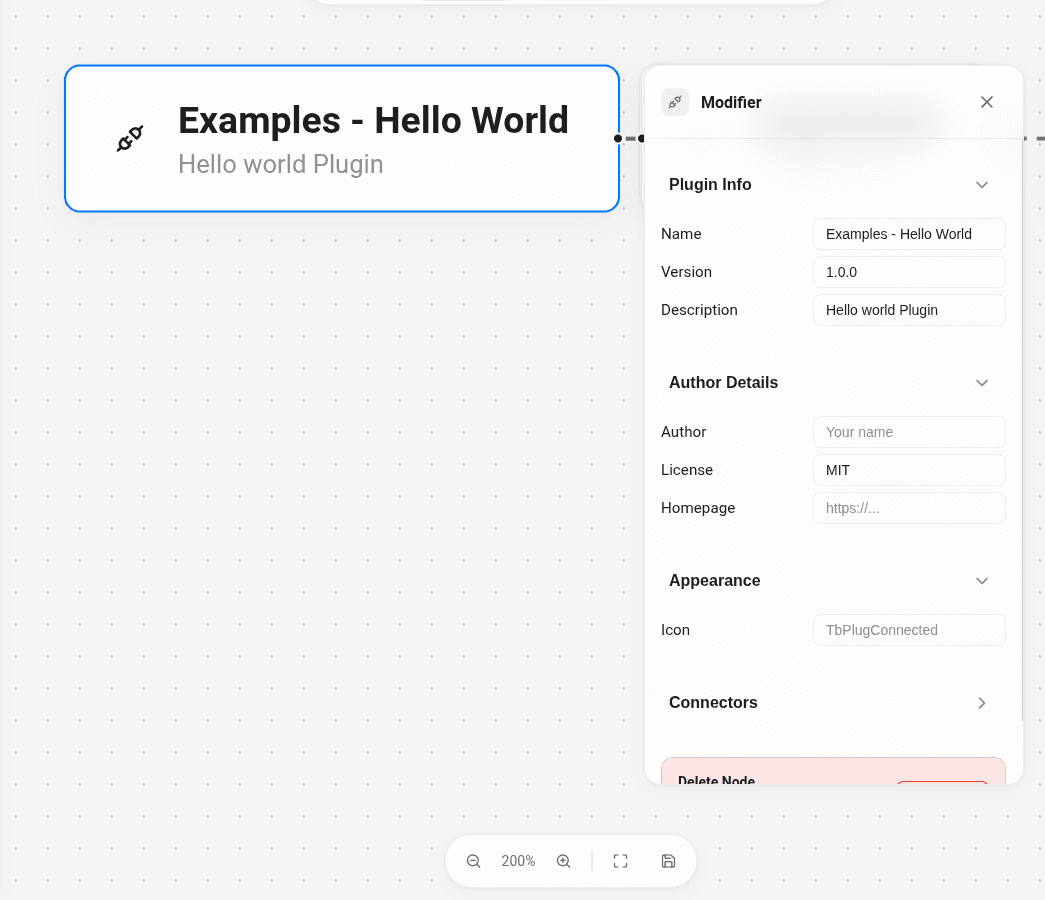

The image below shows a typical Modifier node configuration in the builder.

Arguments

The Arguments node defines the parameters that the program receives at runtime.

If your Entrypoint arguments template contains {{ plugin-arguments.as_str }}, VOLT serializes the configured arguments and passes them to your program.

For Python plugins, those values usually end up in sys.argv together with the input path and the output base path.

Example configuration:

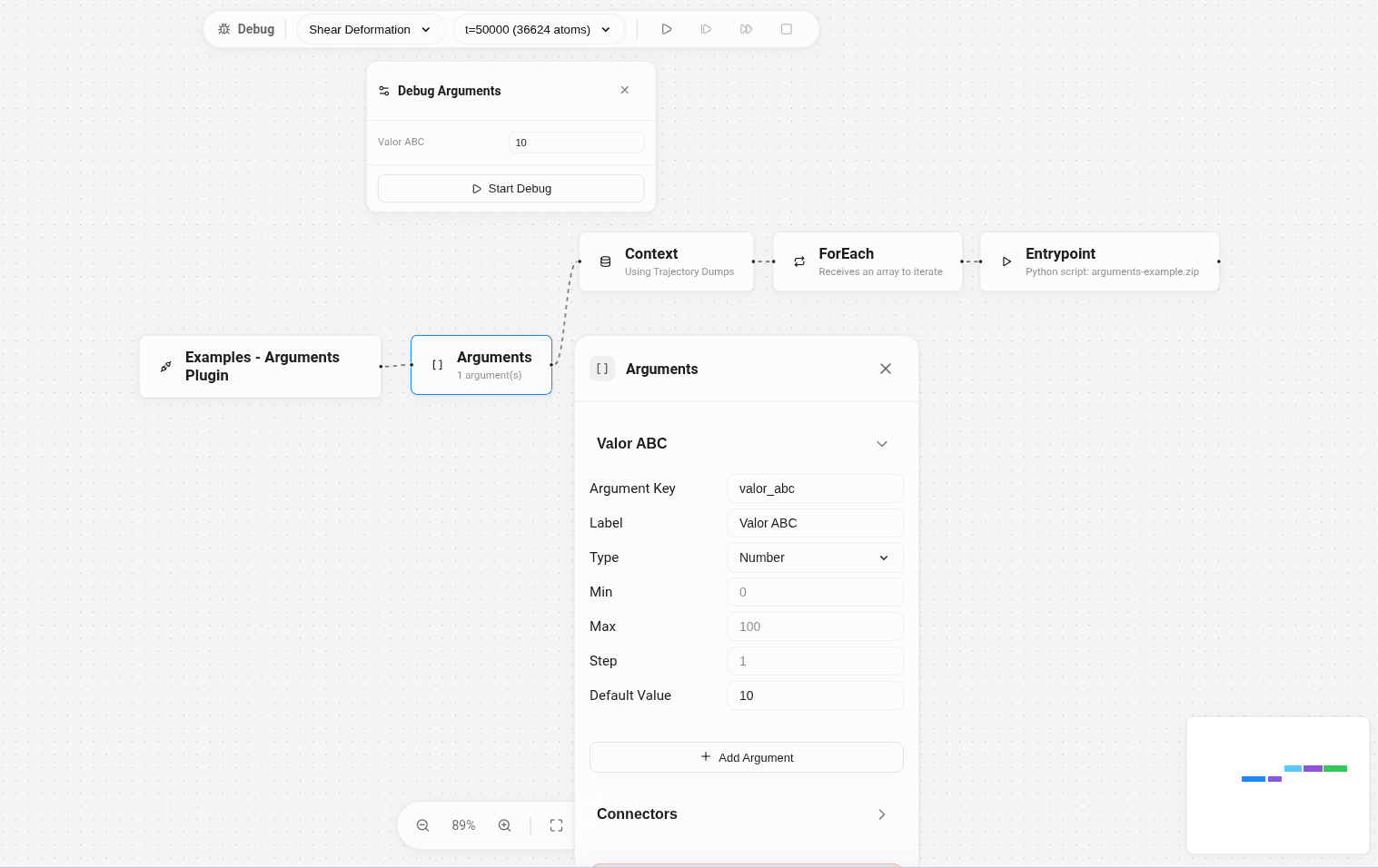

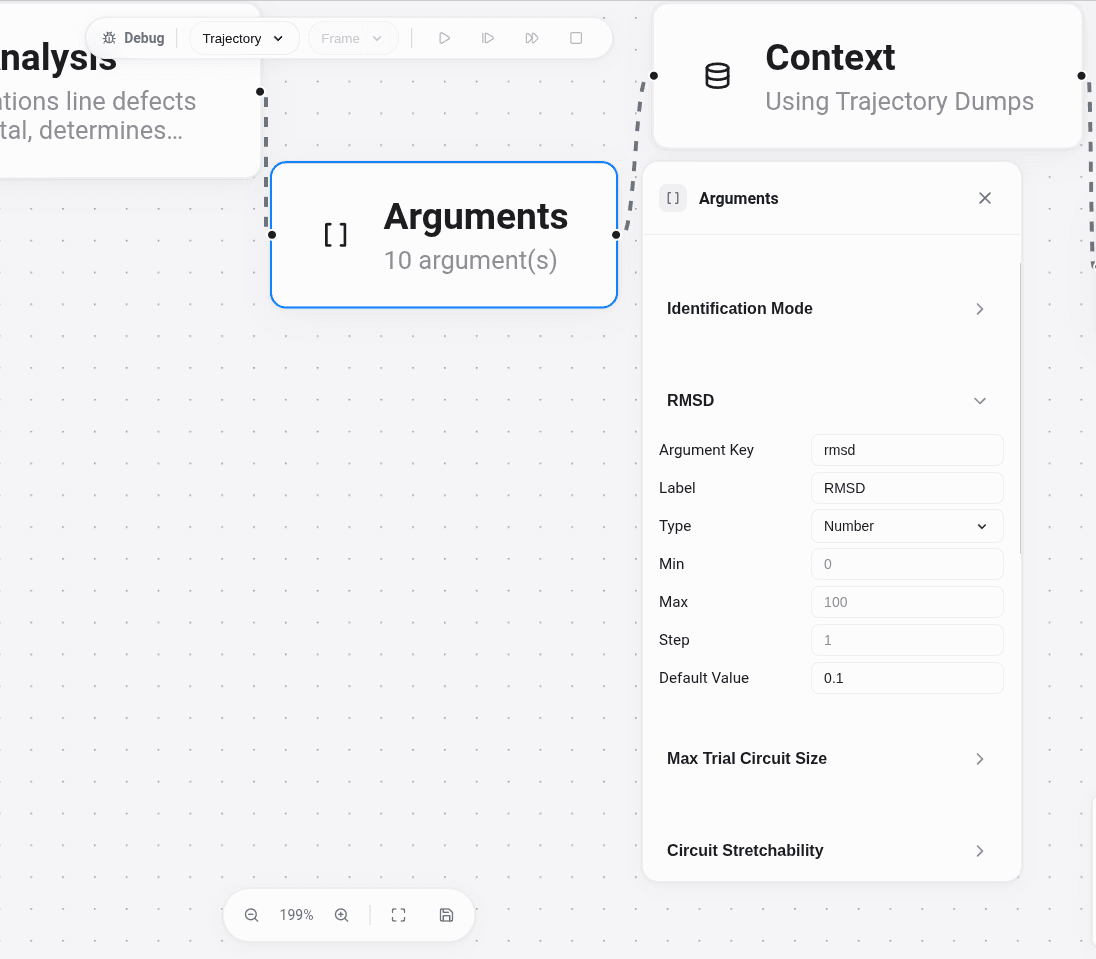

The image below shows an Arguments node with several argument types configured in the builder.

Context

The Context node defines where the workflow gets its runtime data from.

For normal trajectory-based plugins, the configuration is usually simple:

This node is usually stable across plugins. Most analysis workflows use trajectory_dumps.

The image below shows the Context node configured with trajectory_dumps.

ForEach

The ForEach node defines how the workflow iterates over the selected context.

Typical configuration:

This is what makes most plugins run frame by frame.

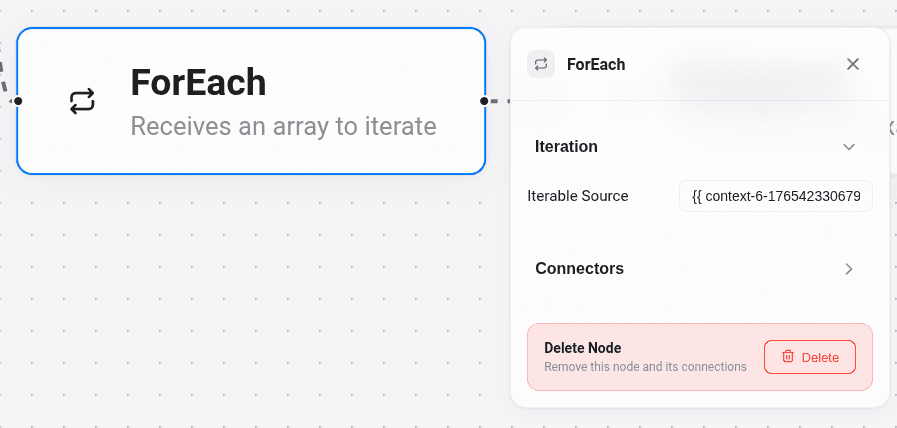

The image below shows the ForEach node configured with {{ trajectory-context.trajectory_dumps }}.

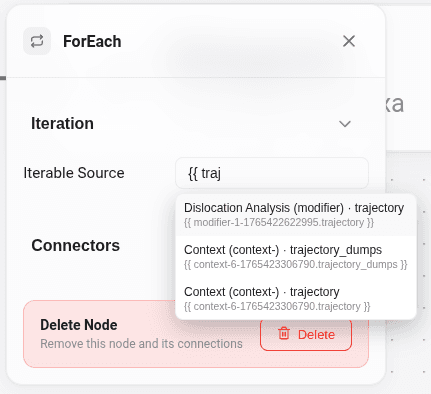

The next image shows the autocomplete that appears while typing {{ tra... }}. This is useful because it makes clear that trajectory_dumps comes from the Context node and can be referenced directly from ForEach.

Entrypoint

The Entrypoint node defines how the uploaded payload is executed.

Main fields:

Use this node to decide whether the payload is a Python ZIP, a single executable, or a packaged executable with extra runtime files.

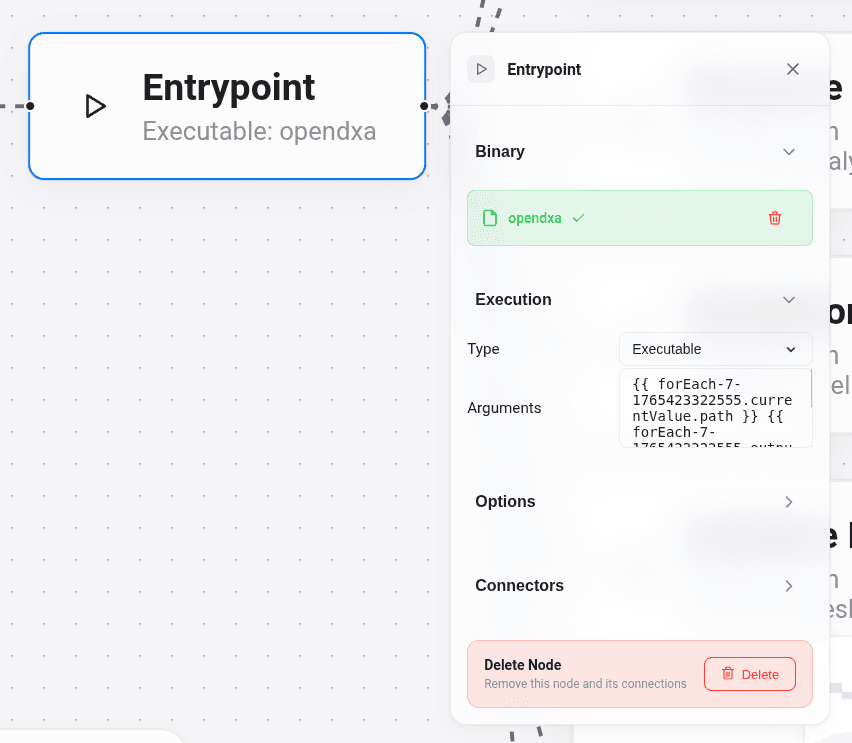

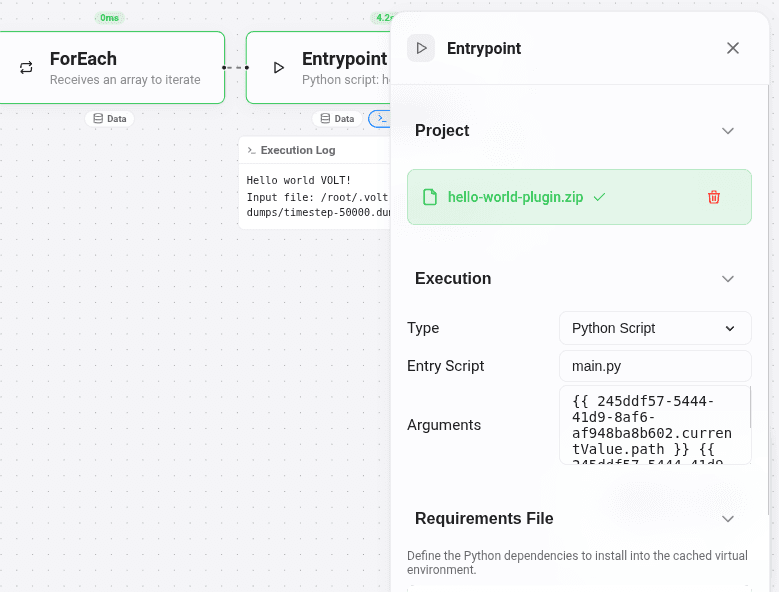

The first image below shows an Entrypoint node configured for a binary-style payload.

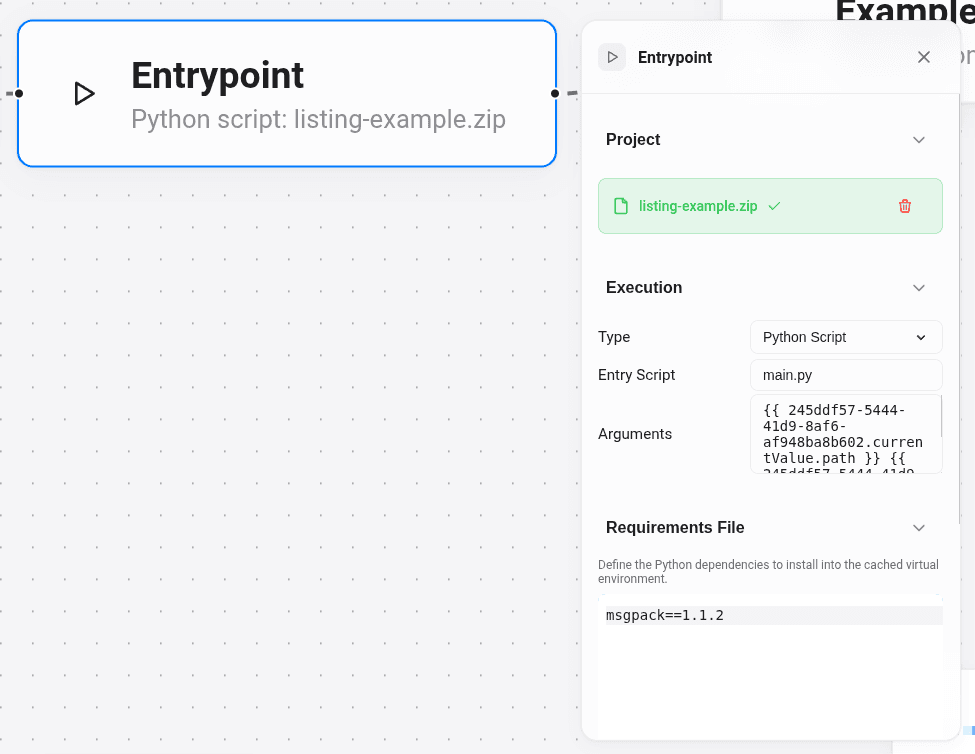

The next image shows the Entrypoint node configured as python-script.

When the type is python-script, VOLT enables an extra field to specify the PyPI dependencies required by the script. Those dependencies are written in Requirements File and are installed before execution.

Exposure

The Exposure node tells VOLT which output file should be ingested after execution.

Typical configuration:

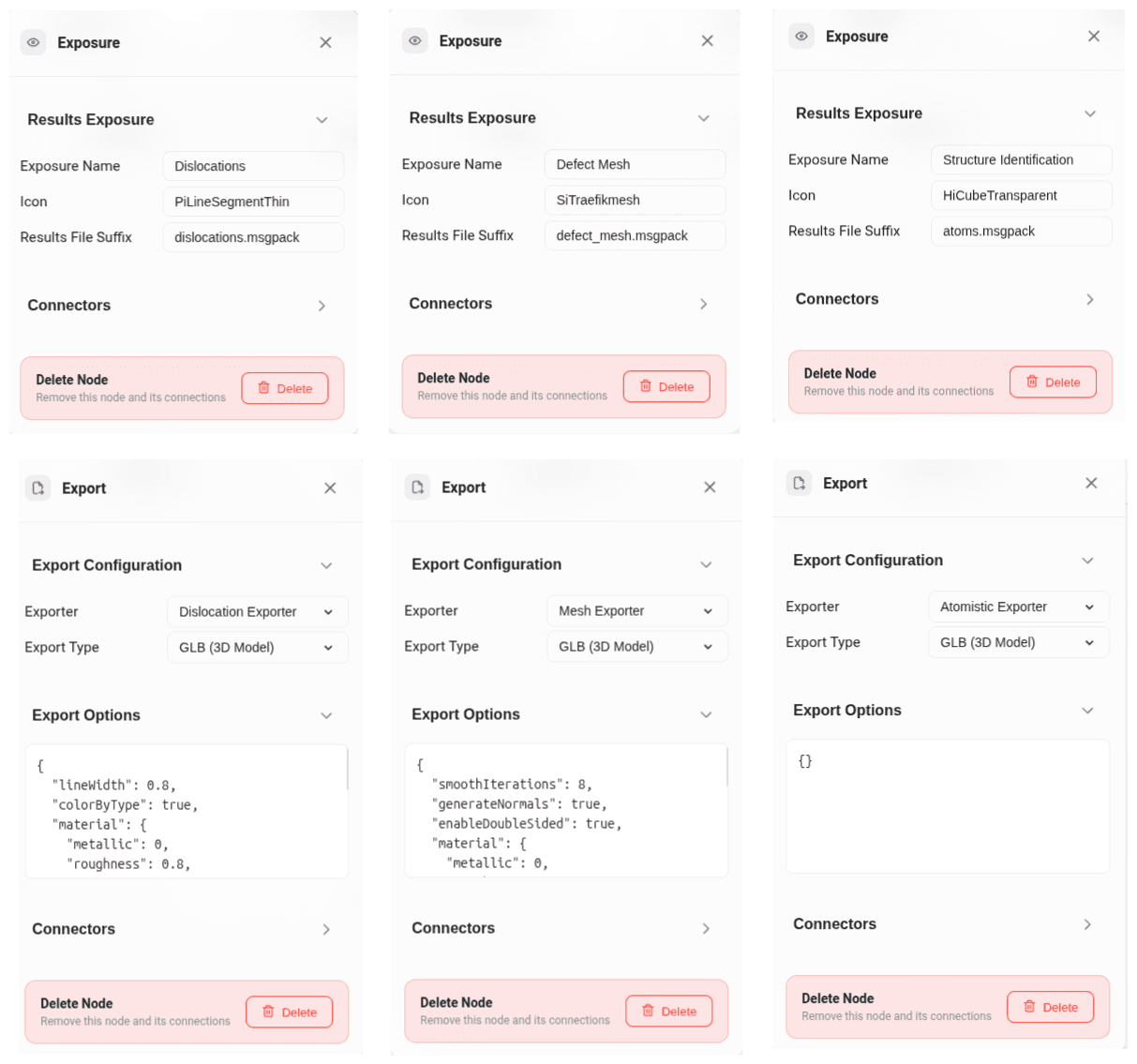

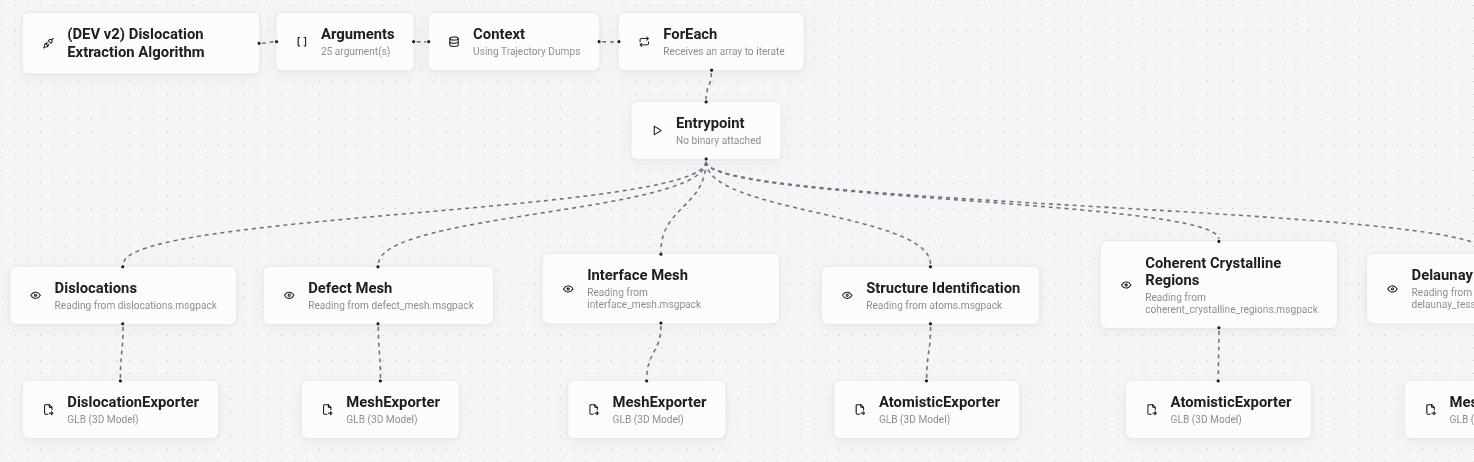

The first image below shows one Entrypoint connected to several Exposure nodes. This is useful because a single execution can produce multiple result files, each with its own exposure.

The next image shows several Exposure node configurations together with the Export node configuration connected to each one. This is the pattern to follow when different result files from the same entrypoint need different exporters.

Export

The Export node tells VOLT how to convert the export payload from an exposure into an artifact.

Typical configuration:

This node always depends on an Exposure node, because the exporter reads the export key from the exposure result file.

Choosing the right Entrypoint type

The most important decision in the workflow is usually the Type field in the Entrypoint node.

Executable

Choose Executable when you already have a single runnable binary.

• Upload a binary file directly.
• You do not set Entry Script.
• You do not use Requirements File.
• The daemon runs that binary as-is.

Use this when your plugin payload is already one compiled executable and does not need extra project files around it.

Python Script

Choose Python Script when your plugin is Python code packaged as a ZIP project.

• Upload a ZIP file that contains your Python project.
• Set Entry Script to the Python file inside that ZIP, for example main.py or scripts/cna_plugin_wrapper.py.
• If your project needs Python dependencies, paste them into Requirements File.
• If it does not need dependencies, leave Requirements File empty.

Packaged Executable

Choose Packaged Executable when your runtime is a ZIP bundle that contains an executable plus supporting files such as bin/, lib/, lookup tables, or other resources.

• Upload a ZIP file.
• Set Entry Script to the executable or launcher inside the archive.
• Do not use Requirements File.

At runtime, team clusters extracts the ZIP and resolves the executable path from Entry Script before running it.

Use this when your plugin needs more than one file to run. A typical case is a packaged scientific binary with shared libraries. This is the pattern used by the native OpenDXA executable bundle.

A practical rule

What to put in Arguments

The Arguments field is the command template passed to the selected runtime.

The most common values are:

• {{ foreach-trajectory-dumps.currentValue.path }} → the current input dump path
• {{ foreach-trajectory-dumps.outputPath }} → the output base path used by exposures
• {{ plugin-arguments.as_str }} → all UI-configured plugin arguments serialized as CLI flags
• {{ <entrypoint-node-id>.projectPath }} → the extracted package directory, useful for packaged executables

For example, a Python ZIP usually looks like this:

{{ foreach-trajectory-dumps.currentValue.path }} {{ foreach-trajectory-dumps.outputPath }} {{ plugin-arguments.as_str }}

And a packaged executable may need something like this:

--library-path {{ opendxa-entrypoint.projectPath }}/lib {{ opendxa-entrypoint.projectPath }}/bin/opendxa {{ foreach-trajectory-dumps.outputPath }}_annotated.dump {{ foreach-trajectory-dumps.outputPath }}

The one rule that matters most

The Exposure node is a file contract.

If the exposure says:

and the entrypoint receives abc as the output base, then your code must write:

abc_atoms.msgpack

That is the first thing to get right. If the filename does not match, VOLT will not ingest the result even if the payload itself is valid.

For example, if your entrypoint receives the output base in sys.argv[2], the code can write the exposure file like this:

import msgpack
import sys

output_base = sys.argv[2]

payload = {
    "main_listing": {
        "identified_atoms": 9211,
        "defect_atoms": 314
    }
}

with open(f"{output_base}_atoms.msgpack", "wb") as f:
    f.write(msgpack.packb(payload, use_bin_type=True))

If output_base is abc, this writes abc_atoms.msgpack, which matches the Exposure node contract.

What the Exposure node is for

In practice, the fields you will use the most are:

The rest of the exposure settings are more advanced. For most first plugins, name plus results suffix is enough.

What your code should receive

The exact entrypoint arguments depend on how you configured the node, but the common pattern is:

• input dump path,
• output base path,
• and optional serialized parameters.

For example:

import sys
import msgpack

input_file = sys.argv[1]
output_base = sys.argv[2]

payload = {
    "main_listing": {
        "ok": True
    }
}

with open(f"{output_base}_results.msgpack", "wb") as f:
    f.write(msgpack.packb(payload, use_bin_type=True))

If your exposure suffix is results.msgpack, that file will be picked up correctly.

What can go inside one exposure file

An exposure file is usually a MessagePack object with one or more of these keys:

{
  "main_listing": {},
  "sub_listings": {},
  "per-atom-properties": [],
  "export": {}
}

One exposure can contain only one of these keys, or several at once.

Returning listings

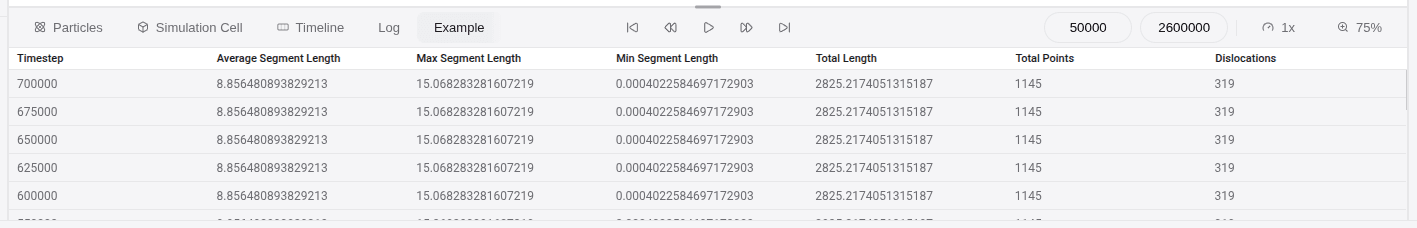

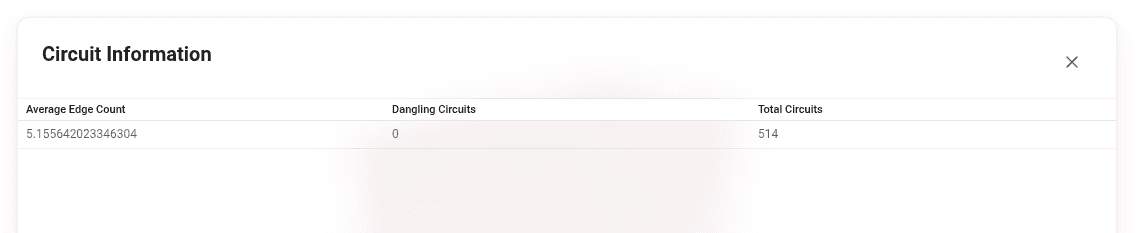

If you want VOLT to show summary values and result tables, return main_listing and sub_listings.

payload = {
    "main_listing": {
        "total_points": 1145,
        "dislocations": 319,
        "total_length": 2825.21
    },
    "sub_listings": {
        "dislocation_segments": [
            {
                "segment_id": 0,
                "length": 11.45,
                "magnitude": 0.408,
                "burgers_vector": [-0.16, -0.16, -0.33]
            }
        ]
    }
}

Use this when your result is mostly tabular or summary-oriented.

Returning per-atom-properties

Use per-atom-properties when you want VOLT to attach analysis values back to atoms.

The important rule is that each row must identify the atom with id.

Row format

{
  "per-atom-properties": [
    {
      "id": 1,
      "csp": 0.042,
      "strain": [0.10, 0.02, -0.01],
      "structure_type": 2
    },
    {
      "id": 2,
      "csp": 0.731,
      "strain": [0.18, 0.05, 0.00],
      "structure_type": 0
    }
  ]
}

Columnar format

VOLT also accepts a columnar shape:

{
  "per-atom-properties": {
    "id": [1, 2],
    "csp": [0.042, 0.731],
    "strain": [
      [0.10, 0.02, -0.01],
      [0.18, 0.05, 0.00]
    ],
    "structure_type": [2, 0]
  }
}

Important details:

• id is what links the property row back to the atom.
• Scalar values work as-is.
• Array values also work. VOLT flattens them into fields such as strain[0], strain[1], and strain[2] when needed.
• If you want users to filter atoms, color by a numeric property, or inspect analysis values in the particles table, this is the key to use.

Using AtomisticExporter

Use AtomisticExporter when your result is a set of atoms or points that should come back into the viewer as a GLB artifact.

In the Export node:

• choose AtomisticExporter,
• choose export type glb,
• connect that export node to the exposure that will contain the atom payload.

Then write the export payload inside the same MessagePack file under export.

Single-object export format

{
  "export": {
    "AtomisticExporter": {
      "FCC": [
        { "id": 1, "pos": [0.0, 0.0, 0.0] },
        { "id": 2, "pos": [0.5, 0.5, 0.0] }
      ],
      "HCP": [
        { "id": 3, "pos": [1.0, 0.0, 0.0] }
      ],
      "Other": [
        { "id": 4, "pos": [1.5, 0.5, 0.0] }
      ]
    }
  }
}

Array export format

{
  "export": [
    {
      "AtomisticExporter": {
        "FCC": [
          { "id": 1, "pos": [0.0, 0.0, 0.0] }
        ]
      }
    },
    {
      "AtomisticExporter": {
        "Defects": [
          { "id": 9, "pos": [2.0, 0.0, 0.0] }
        ]
      }
    }
  ]
}

Important details:

• VOLT accepts both envelopes: one exporter object, or an array of exporter objects.
• In the single-object form, the payload is a grouped object where each key is a group name.
• Those group names drive the colouring in the viewer.
• Names like FCC, BCC, HCP, Other, or Cluster 7 are especially useful because they map naturally to the existing palettes.
• For each atom, pos is the required field.
• If you use the array form, ClusterDaemon generates one artifact per array entry.

This is the exporter to study first if you want to reproduce outputs like Structure Identification or coherent crystalline region overlays.

One exposure can do more than one thing

You do not need separate files for every kind of result.

For example, one exposure can return:

• a summary in main_listing,
• atom-attached values in per-atom-properties,
• and a 3D overlay in export.

{
  "main_listing": {
    "identified_atoms": 9211,
    "defect_atoms": 314
  },
  "per-atom-properties": [
    { "id": 1, "structure_type": 2 },
    { "id": 2, "structure_type": 0 }
  ],
  "export": {
    "AtomisticExporter": {
      "FCC": [
        { "id": 1, "pos": [0, 0, 0] }
      ],
      "Other": [
        { "id": 2, "pos": [1, 0, 0] }
      ]
    }
  }
}

That pattern is often the most useful one: one exposure file, several ways for the user to inspect the same analysis.

Downloadable example plugins

Most ZIP files below are meant to be used as small entrypoint examples.

Those entrypoint-only examples contain the plugin code, while the workflow itself is still something you configure from the UI with nodes.

Included examples:

• hello-world-plugin.zip
• arguments-example.zip
• listing-example.zip
• atomistic-exporter-clusters.zip
• per-atom-properties.zip

hello-world-plugin

• Download: hello-world-plugin.zip
• This is the smallest possible example of an Entrypoint node.
• Its purpose is to show that VOLT executes your script and that anything you print(...) appears in the execution log.
• It does not write an exposure file. You use it to understand entrypoint execution first, before adding Exposure outputs.

Flow in the builder

Modifier -> Arguments -> Context -> ForEach -> Entrypoint

For this example, the Arguments node can stay empty. The goal is to understand the smallest possible workflow that still executes code.

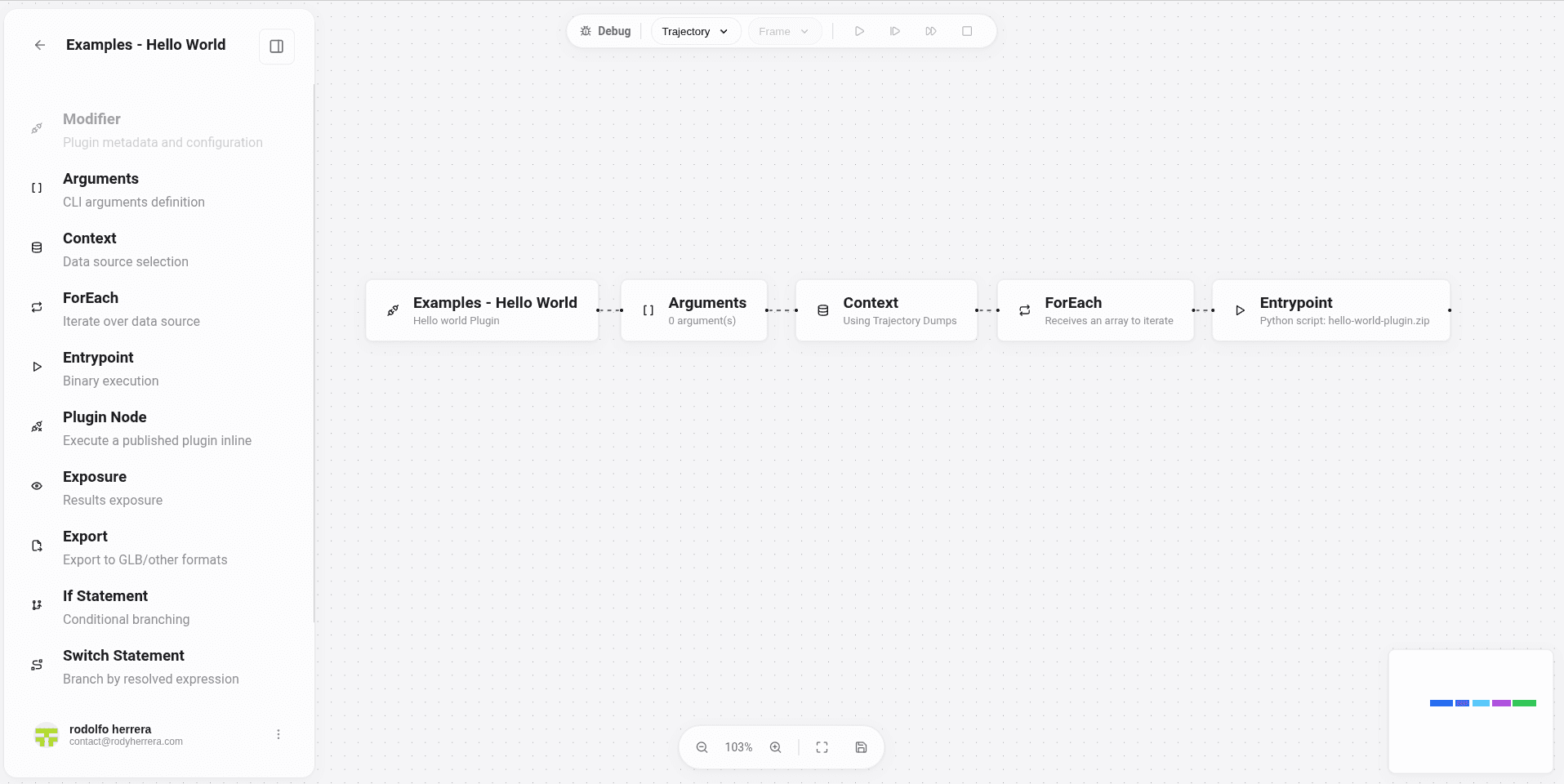

The first image shows the full workflow in the builder. This matters because it makes clear that the example stops at Entrypoint and does not add an Exposure node.

The next image shows the Entrypoint node configuration. This is where the ZIP is uploaded and where VOLT is told how to execute the Python script inside it.

The Python code inside the ZIP is intentionally minimal. Its only job is to print information so you can verify that execution happened.

import sys

print('Hello world VOLT!')

# VOLT first-argument correspond to the input file.
input_file = sys.argv[1]

print(f'Input file: {input_file}')

The last image shows the execution log. This is the expected result of the example: the print(...) output appears in the log after the Entrypoint node runs.

arguments-example

• Download: arguments-example.zip
• This example shows exactly what the Entrypoint node passes into your script through sys.argv.
• Its purpose is to help you inspect the real runtime arguments from the execution log.
• It is the fastest way to understand how the input file path, output base path, and any UI-configured arguments arrive in Python.

Flow in the builder

Modifier -> Arguments -> Context -> ForEach -> Entrypoint

This is the example to use when you want to understand the Arguments node better, because it makes the program print the received arguments directly to the execution log.

The image below shows the full picture for this example. At the top, you can see the user-facing arguments as friendly inputs. In the center, you can see the workflow itself. At the bottom, you can see the Arguments node configuration that defines those same inputs for the program.

The Python code inside arguments-example.zip is intentionally minimal. It only prints the received arguments so you can inspect exactly what VOLT passed into the script.

import sys

print('sys.argv:')
for idx, arg in enumerate(sys.argv):
    print(idx, arg)

The next image shows the execution log for this example. This is the expected result: the script lists the received arguments one by one, which makes it easy to verify the final runtime values.

listing-example

• Download: listing-example.zip
• This example shows how an Exposure node can return main_listing and sub_listings.
• Its purpose is to teach the result shape VOLT reads to render summary values and result tables.
• If the Exposure node uses example.msgpack as its results suffix, this script writes the correct file: {outputBase}_example.msgpack.
• Once the run finishes, the output is visible through the exposure result in VOLT rather than only in the execution log.

Flow in the builder

Modifier -> Arguments -> Context -> ForEach -> Entrypoint -> Exposure

Here the important node is Exposure, because it tells VOLT to ingest the MessagePack file written by the program and render the listing output in the UI.

The first image shows the full workflow. The important part is the last node: Exposure. That is the node that reads the file exported by the code.

The next image shows the Exposure node configuration used by this example. This is where the results file suffix is defined, so it must match the filename written by the Python code.

The Python code below writes the MessagePack file consumed by that Exposure node.

import msgpack
import sys

# Each key in main_listing and sub_listings becomes a column name in VOLT.
payload = {
    'main_listing': {
        'average_segment_length': 8.856480893829213,
        'max_segment_length': 15.068283281607219,
        'min_segment_length': 0.0004022584697172903,
        'total_length': 2825.2174051315187,
        'total_points': 1145,
        'dislocations': 319
    },
    'sub_listings': {
        'circuit_information': [
            {
                'average_edge_count': 5.155642023346304,
                'dangling_circuits': 0,
                'total_circuits': 514
            }
        ],
        'dislocation_segments': [
            {
                'burgers_vector': [-0.16666666666666669, -0.16666666666666666, -0.3333333333333333],
                'length': 11.45334956118728,
                'magnitude': 0.408248290463863,
                'segment_id': 0
            },
            {
                'burgers_vector': [-0.3333333333333333, 0.16666666666666652, 0.16666666666666674],
                'length': 10.363263816655667,
                'magnitude': 0.40824829046386296,
                'segment_id': 1
            }
        ]
    }
}

output_base = sys.argv[2]
with open(f'{output_base}_example.msgpack', 'wb') as f:
    f.write(msgpack.packb(payload, use_bin_type=True))

print(f'Wrote {output_base}_example.msgpack')

Running plugins in the canvas

Once the plugin is created and published, it becomes available in the trajectory canvas.

The image below shows hello-world-plugin selected in the canvas. Two runtime inputs appear by default:

• Cluster: the cluster where the plugin will run.
• Selected timesteps: the timesteps that will be executed.

When a plugin starts executing, its status is updated in real time:

• queue
• running
• success

After a plugin has executed, you can open its right-click menu in the canvas. The image below shows the available actions for an executed plugin:

• Select
• Download
• Delete

When a plugin has execution output, the canvas timeline enables a new tab named Log. That tab shows the execution output for the currently selected timestep.

If the plugin returns an exposure with main_listing, the canvas also enables a new tab named after that exposure. In the listing-example, that tab corresponds to the exposure we already configured earlier in the workflow.

The image below shows the listing output for the selected timestep. Because the example uses hardcoded values, every timestep shows the same main_listing rows.

Each main_listing row also has its own right-click menu. The image below shows the available actions:

• View inspect atoms
• Delete
• View <sub_listing_name> for each exported sub-listing

In this example, the code exports two sub-listings:

• circuit_information
• dislocation_segments

The last image shows one of those sub-listings, in this case circuit_information, for the selected timestep.

per-atom-properties

• Download: per-atom-properties.zip
• This example shows how to return per-atom-properties from an Exposure node.
• Its purpose is to attach derived values back to atoms by id.
• Those values can then be used in the particles table, filters, and color coding workflows.
• It does not create a GLB by itself. It teaches the per-atom data contract, not a 3D exporter.

Flow in the builder

Modifier -> Arguments -> Context -> ForEach -> Entrypoint -> Exposure

This flow looks similar to the listing example, but the exposure payload is different: instead of main_listing / sub_listings, it returns per-atom-properties keyed by atom id.

import math
import msgpack
import sys

with open(sys.argv[1]) as f:
    lines = f.read().splitlines()

cols_idx = next(
    idx for idx, line in enumerate(lines)
    if line.startswith('ITEM: ATOMS')
)

cols = lines[cols_idx].split()[2:]
id_idx = cols.index('id')
x_idx = cols.index('x') if 'x' in cols else None
y_idx = cols.index('y') if 'y' in cols else None
z_idx = cols.index('z') if 'z' in cols else None

rows = []
for raw_line in lines[cols_idx + 1:]:
    values = raw_line.split()
    atom_id = int(values[id_idx])

    position = None
    if x_idx is not None and y_idx is not None and z_idx is not None:
        position = [
            float(values[x_idx]),
            float(values[y_idx]),
            float(values[z_idx])
        ]

    rows.append({
        'id': atom_id,
        'structure_type': atom_id % 4,
        'coordination': 12 if atom_id % 2 == 0 else 11,
        'distance_from_origin': math.sqrt(sum(component * component for component in position)) if position else 0.0,
        'position_copy': position or [0.0, 0.0, 0.0]
    })

payload = {
    'per-atom-properties': rows
}

output_base = sys.argv[2]
with open(f'{output_base}_example.msgpack', 'wb') as f:
    f.write(msgpack.packb(payload, use_bin_type=True))

print(f'Wrote {output_base}_example.msgpack')
